Outdoor Waterproof WiFi Signal Jammer Mobile Phone Blocking Device
250 Watt
WIFI Signal Jammer Description:

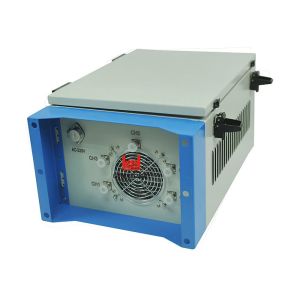

This jammer GW-J265DW is a waterproof model. Using high quality waterproof case, ensure
stability of the equipment,even work in bad weather
conditions.Equipped with special high gain directional
panel antenna or fiberglass omni-directional whip antenna, the
jammer can effective block CDMA,GSM ,DCS ,3G, WIFI . Use the
overseas advanced chip and technology . With independent modular
design,
it keeps high operation efficiency, and avoid mutual interference.
50 watts per band, total RF power 250 watts, also with power
adjustable switches to control the jamming range.
WIFI Signal Jammer Features:
1. High-power multi-band jammer, make high jamming range
2. Modular construction for easy maintenance, repair and upgrade.
3. Jamming up to FIVE different jamming modules.
4. Max 250watts total RF output power.
5. Special additional housing for all weather protection.
6. The general design of the system meets military requirements.
7. Different frequency band can be controlled independently by
single switches;
8. Power Amplifiers protection design ensures the working
reliability of the device.
9. Can customize these frequencies AM, FM Radio, LoJack 173MHz,
VHF, UHF, Walkie-talkie, interphone, Wireless Toys , FM Radio,
Remote Control, 27MHz, 49MHz, 433MHz,315MHz, 868MHz, 450MHz, iDEN,
CDMA, GSM, GPRS, DCS, PCS, AWS, WCDMA,UMTS,3G,4G,LTE 700, LTE 800,
LTE 2300, LTE 2600, GPS L1,GPSL2, Galileo, Compass, Glonass, WIFI,
Bluetooth, Spy camera, WIMAX, UAV, Drone, etc.
WIFI Signal Jammer Advantages:
1. VSWR protection,
When there be antenna disconnect, full system will not burn out.
2. Waterproof Level: IP65
Good cooling system, Continuous operation, even in hot climates.
3. Stable capability, cost-effective choice
4. Each channel can be controlled separately and simultaneously.
Manual adjustable output power with each channel.
WIFI Signal Jammer Application:
Prisons, military, government, Oil and Gas Storage Facilities and
fields, Churches, Theatres, Libraries, Museums, Courts, Border
Patrol and Drug Enforcement, Customs, mosques, etc.
WIFI Signal Jammer Technical Specification:
| Output interface | Description | Shield band of frequency | RF output power |
| CH1 | CDMA800 | 851-894 MHz | 47dBm |
| CH2 | WCDMA 3G | 2110-2170 MHz | 47dBm |
| CH3 | GSM900 | 925-960 MHz | 47dBm |
| CH4 | GSM1800 /PCS 1900 | 1805-1880 MHz /1930-1990 MHz | 47dBm |
| CH5 | WIFI, 2.4G | 2400-2485 MHz | 47dBm |
| LTE 2600(Optional) | 2620-2690MHz | 47dBm |
| GPS L1(Optional) | 1570-1580 MHz | 47dBm |
| LTE800(Optional) | 790-821 MHz | 47dBm |
| Power supply: AC220V, or DC 28V |
| Total Output Power: 250Watt |
| Power consumption:800Watt |
| Weight: 28Kg Size(length × wind × high):592×395×265mm |
Humidity: 30%-95% Running Temperature: -20℃ to +55℃ |
| Jammer Module Number | 5 |
| Cooling System | Systematic Smart Cooling System |
| System Protection | VSWR Protection |
| Jamming Source | Frequency Scan Technology |
| Antenna Type | High Gain Directional Panel Antennas or omni antenna |
| Jamming range: 50-300m according to signal density of mobile
network |
