1900MHz PCS Cell Phone Signal Repeater 10W Frequency Wireless Access

10W Signal Repeater Description:
The BTS in the suburbs and countrysides are mainly built in the township where the government is located and the population is relatively concentrated. Many villages can not receive mobile signals due to the far distance from the BTS.

In the suburbs and countrysides, the signal coverage is mainly to solve signal blind spots and signal weak zones problem, and the teletraffic is not the main contradiction. At present, the basis of the circuit of the wired network is poor in villages, so it is difficult and costly for the layout and the construction of the cable. Using the wireless network bridging, increasing and extending the coverage range of the base stations has become the ideal rural network access.

The Frequency Shift Repeater (FSR) is designed to solve problems of weak mobile signal, which can expand more coverage than RF repeater and reduce investment for the areas where fiber optic cable is not available.
The whole FSR system consists of two parts: Donor Unit and Remote Unit. They transparently convey and amplify the wireless signal between the BTS (Base Transceiver Station) and mobiles via RF wave at different frequency from the BTS.
The Donor unit receives the BTS signal via a direct coupler closed to the BTS (or via open air RF transmission through the Donor Antenna), then converts it from the working frequency to the link frequency, and transmits the amplified signal to the Remote Unit via the Link Antennas. The Remote Unit will reconvert the signal to the working frequency and provide the signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.

Support these Frequencies:

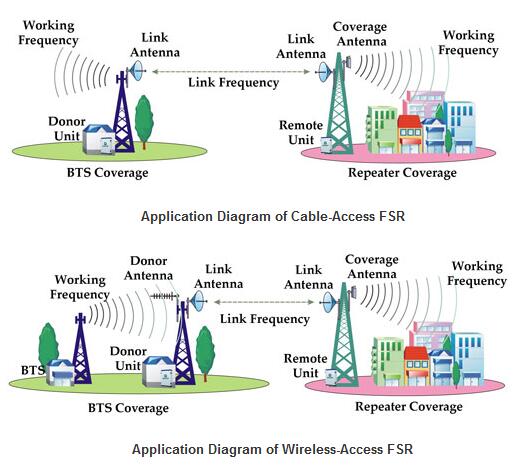

Application Diagram:

   Shenzhen Greetwin Technology Co., Limited is one of the leading suppliers which specializes in designing and manufacturing RF Jamming Equipment and Wireless Coverage Products.

   Wireless Coverage Products include 2G 3G 4G LTE 5G RF Repeater.

   The RF Repeater solutions will bring smooth and clear calls, support all bandwidths and mobile standards including TETRA, iDEN, LTE700, GSM850, EGSM, GSM900, DCS1800, PCS1900, CDMA800, CDMA450, LTE 4G, CDMA2000, 3G(WCDMA), LTE2600 and TDD-LTE series.


   Such as, Wide band Repeater, Band selective Repeater, Digital Repeater, High Power Outdoor Repeater, Fiber Optic Repeater, ICS Repeater, Consumer Signal Booster, Power Amplifier.

We are committed to providing the best solutions for mobile operators, offering OEM and ODM service. Products can be customized according to different operators in the world and the output power are available from 0.01W to 20W.

   RF Jamming Equipment include Cell Phone Signal Jammer, RF Communication Jammer(20-6000MHz) and 20-200W Power amplifier.

   GREETWIN is the foremost innovator in the field of RF jamming, offering a comprehensive range of jamming equipment and systems which have a proven record of reliability and performance in all types of applications and environmental conditions.

   In countering the ever-growing threat of remotely controlled improvised explosive devices (RCIEDs), we has invested heavily in the development of a range of multi-band, very-high-power jamming systems for the protection of troop transportation, military and police checkpoints, large governmental establishments, bomb disposal squads and VIP convoys.

   Such as, 5KM Drone jammer, UAV jammer, High power bomb jamming devices, Military IED jammers, Digital programable jammer, VIP Convoy Bomb Jammers (RCIED Jammers), Mobile Phone Signal Jammers, Prison Jammers, Portable Jammers, Handheld Jammers, to suit all types counter terrorism activities.

   Our clients are government agencies, military, SWAT team, prison, school, bank, law enforcement and VVIPs. We also serve corporations and private individuals who must take responsibility for protecting assets, proprietary information, executives and family members.

  GREETWIN products have been exported to more than 60 countries and regions around the world. Such as Southeast Asia, Africa, Europe, South America and the Middle East.

  Let us hand in hand and create a glorious cause!
