    GSM850 27dBm PCS1900 AWS1700 Mobile Signal Repeater

    Ask Lasest Price
    Brand Name : GREETWIN
    Model Number : GW-27CPA
    Certification : SGS, ISO9001,CE,ROHS
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 5000pcs per Month
    Delivery Time : 3 Working Days After Received Payment
    • Product Details
    • Company Profile

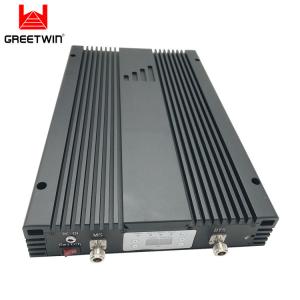

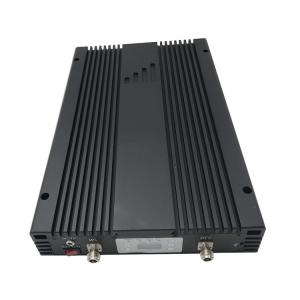

    GSM850 27dBm PCS1900 AWS1700 Mobile Signal Repeater

    27dBm 850 PCS1900 AWS1700 B2 B4 B5 Tri-Band Repeater Cell Booster GSM Amplifier (GW-27CPA)


    A cell phone signal booster (also known as amplifier or repeater) is made up of three main elements - exterior antenna, amplifier, and interior antenna. They form a wireless system to boost cellular reception.



    Application:
    To expand signal coverage or fill signal blind area where signal is weak or unavailable.

    Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, Shop.etc.


    Specification.


    Model:

    GW-10CPA, 10dBm

    GW-15CPA, 15dBm

    GW-20CPA, 20dBm

    GW-23CPA, 23dBm

    GW-27CPA, 27dBm

    GW-30CPA, 30dBm


    Frequency RangeUplinkDownlink
    GSM850890-915MHz935-960MHz
    DCS18001710 - 1785MHz1805- 1880MHz
    AWS17001710 - 1755MHz2110 - 2155MHz
    Max. Gain75dB80dB
    Max. Output Power23dBm27dBm
    BandwidthWide Band
    Manual Gain Control31dB / 1dB Step
    Automatic Gain Control>25dB
    Ripple in-band≤ 6dB
    Return loss≤ -10dB
    Noise Figure≤ 6dB
    Spurious Emission9KHz~1GHz≤ -36dBm
    1~12.75GHz≤ -30dBm
    Intermodulation≤ -40dBc

    Modulation Accuracy
    ≤ 12.5%
    Time Delay≤ 1.5 μs
    Frequency stability≤ 0.01ppm
    MTBF> 50000 hours
    Power SupplyAC100-240V,DC9V/5A
    Power LEDPower indicator
    Alarm LEDRedAutoexcitation or High Power
    GreenStandard
    Mechanical Specification
    RF ConnectorN-Female
    SwitchPower SwitchManual Gain Control Switch
    CoolingHeatsink Convection cooling
    Impedance50 ohm
    Humidity< 90%
    Operating Temperature-10°C~55°C
    Environment ConditionsIP40

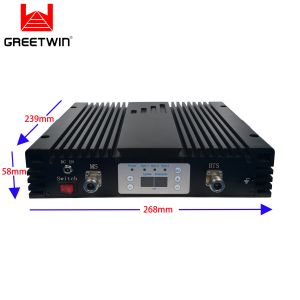

    Size268mm*58mm*354mm
    Weight6Kg


    Application Diagram:

    Recommended Accessories:
    1)Donor antenna: Log Periodic Antenna (9dBi, 806-960/1710-2700MHz)
    2)Service antenna: Omni Ceiling Antenna (3dBi, 806-960/1710-2700MHz)
    3)5D-FB coaxial cable with connecter (Cable length optional)
